TCP Replay Recovery

This test verifies that the application can perform a recovery via TCP Replay Recovery.

This test is available for CME SBE UDP Multicast connection type; from the Interview.

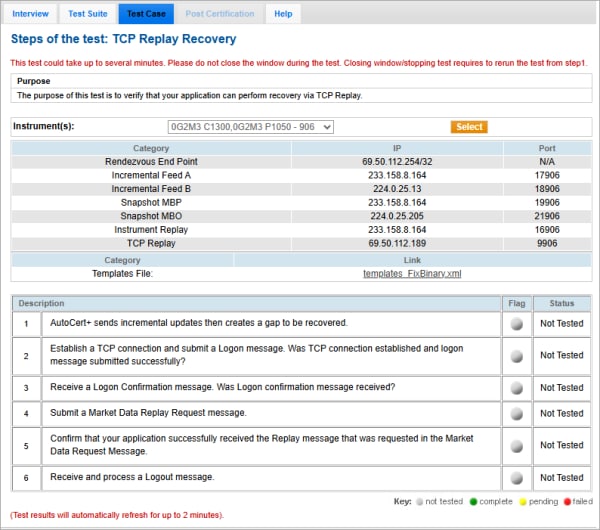

• To complete a TCP Replay Recovery test:

1. Select an Identifier and click ASSIGN.

2. Select an Instrument(s) if one is not already locked.

Note: For futures and options, use the rendezvous point: 69.50.112.254/32.

3. Select START TEST.
4. Receive incremental updates with a gap that needs to be recovered.
5. Select Yes or No to indicate whether a TCP connection was established and a Logon message was submitted successfully.
6. Select Yes or No to indicate whether a Logon confirmation message was received.
7. Submit a Market Data Replay Request (35=V) message.
8. Enter the tag 270-MDEntryPx value to confirm that your application successfully received the replayed message that was requested in the Market Data Replay Request (35=V) message.
9. Receive and process a Logout message.
