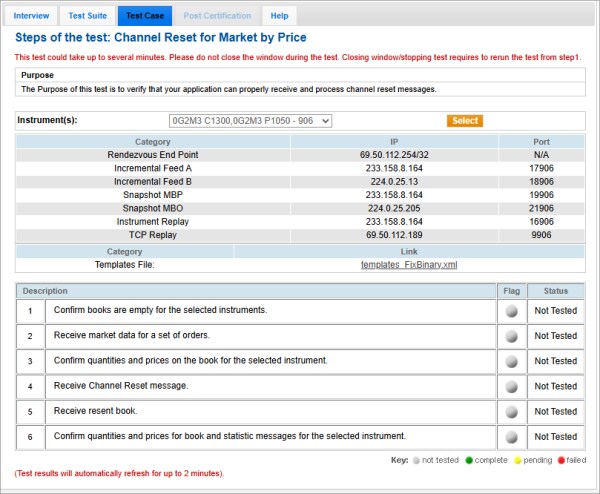

Channel Reset for Market by Price

This test verifies that your application can properly receive and process Channel Reset [Market Data Incremental Refresh (tag 35-MsgType=X)] messages.

This test is available for CME SBE UDP Multicast and CME Smart Stream on GCP SBE connection types; from the Interview.

  • To run the Channel Reset test:
  1. From the Instrument drop-down, select the desired contract if the contract is not already locked.

Note: For futures and options, use the rendezvous point: 69.50.112.254/32.

  1. Click START TEST.
  2. Confirm that the books are empty.

Click Yes or No.

  1. Receive market data for a set of orders.
  2. Enter the quantities (tag 271-MDEntrySize) and prices (tag 270-MDEntryPx) on the book for the selected instrument.

  1. Receive a Channel Reset [tag 35-MsgType=X, 269-MDEntryType=J (Empty Book)] message
  2. Receive resent book and statistics messages.

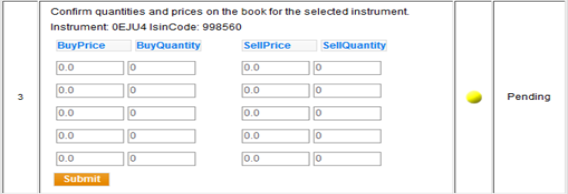

  3. Enter the quantities (tag 271-MDEntrySize) and prices (tag 270-MDEntryPx) from the book for the selected instrument.
