Mid-Week Key Rotation (MSGW)

The purpose of this test is to verify that the client system can properly logon or Negotiate to the CME system using the security enhancement functionality with key rotation.

Note: You will need two valid keys to complete this test.

Note: If a test is not proceeding to the next step, selecting the Refresh button ( ) below the test steps may resolve the issue.

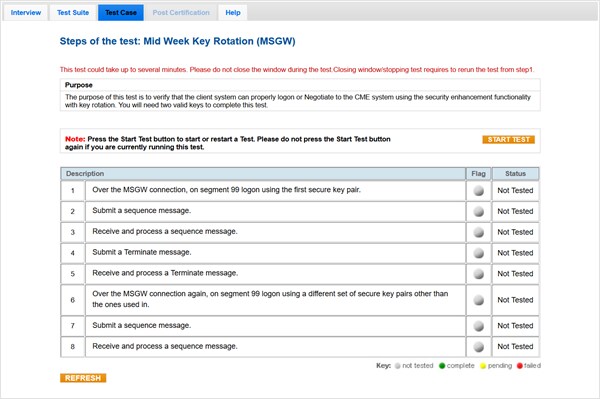

  • To complete the Mid-Week Key Rotation (MSGW) test:
  1. Select a SenderComp from the drop-down and select ASSIGN if a SenderComp is not already assigned.
  2. Select the START TEST button.

Note: DO NOT select the START TEST button once the test process is in progress.

  1. Over the MSGW connection, on segment 99 logon using the first secure key pair.
  2. Submit a Sequence message.
  3. Receive and process a Sequence message.
  4. Submit a Terminate message.
  5. Receive and process a Terminate message.
  6. Over the MSGW connection again, on segment 99, logon using a different set of secure key pairs other than the ones used in step 1.
  7. Submit a Sequence message.
  8. Receive and process a Sequence message.
