iLink Order Mass Action Request by Market Segment ID

The Purpose of this test is to verify that customer application can submit Order Mass Action Request (35=CA) to cancel working orders by Market Segment ID.

Pre-Registered or On-Demand Format

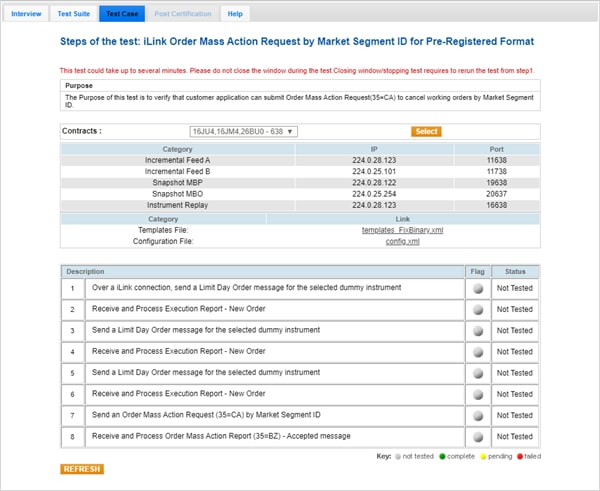

Note: This test is used for both Pre-Registered and On-Demand formats. The image below shows the Pre-Registered format version of the test.



Note: If a test is not proceeding to the next step, selecting the Refresh button ( ) below the test steps may resolve the issue.

  1. To run an iLink Order Mass Action Request by Market Segment ID test:
  1. Select a SenderComp from the drop-down and select ASSIGN if a SenderComp is not already assigned.
  2. Click the "START TEST" button.

Note: DO NOT select the "START TEST" button once the test process is in progress.

  1. Over a iLink connection, send a Limit Day Order message for the selected dummy instrument
  2. Select Yes or No to indicate whether your system received and processed the Execution Report - New Order.
  3. Send a Limit Day Order message for the selected dummy instrument.
  4. Select Yes or No to indicate whether your system received and processed the Execution Report - New Order.
  5. Send a Limit Day Order message for the selected dummy instrument.
  6. Select Yes or No to indicate whether your system received and processed the Execution Report - New Order.
  7. Send an Order Mass Action Request (35=CA) by Market Segment ID.
  8. Enter the following tag values to indicate that your system received and processed the Order Mass Action Report (35=BZ) - Accepted message:
  • 1300-MarketSegmentID
  • 1374-MassActionScope
  • 1375-MassActionResponse
