Bi-Directional Gap Scenario (Sequence Gap Fill for Mass Quotes)

The purpose of this test is to verify that the client system can process bi-directional gap Retransmit Request / Not Applied messages by sending a Sequence Reset-Gap Fill message for mass quotes.

For Pre-Registered or On-Demand Format

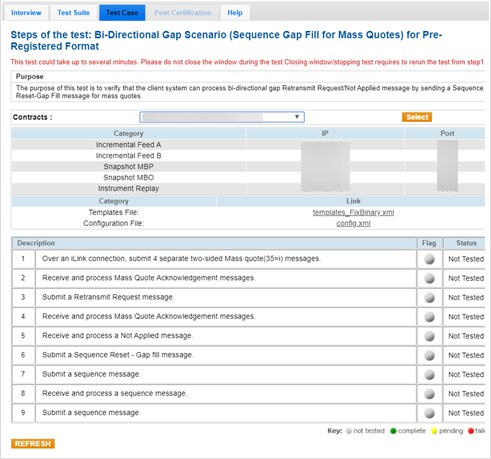

Note: This test is used for both Pre-Registered and On-Demand formats. The image below shows the Pre-Registered format version of the test.



  1. To run a Bi-Directional Gap Scenario (Sequence Gap Fill for Mass Quotes) test:
  1. Select a SenderComp from the drop-down and select ASSIGN if a SenderComp is not already assigned.
  2. Select the START TEST button.

Note: DO NOT select the START TEST button once the test process is in progress.

  1. Over an iLink connection, submit 4 separate two-sided Mass quote (35=i) messages
  2. Receive and process Mass Quote Acknowledgment messages.
  3. Submit a Retransmit Request message
  4. Receive and process Mass Quote Acknowledgment messages.
  5. Receive and process a Not Applied message.
  6. Submit a Sequence Reset - Gap fill message
  7. Submit a Sequence message.
  8. Receive and process a Sequence message.
  9. Submit a Sequence message.
