Process a Test Request and Respond to Resend Request

This test verifies that the client system can process a Test Request and respond to a Resend Request.



  1. Select a SenderComp / API ID from the drop-down and select ASSIGN if not already assigned.
  2. (If applicable) From the Instrument(s) drop-down, select the desired instrument if the instrument is not already locked.
  3. Select the START TEST button.

Note: DO NOT select the START TEST button once the test is in progress.

Note: If a test is not proceeding to the next step, clicking the Refresh button () below the test steps may resolve the issue.

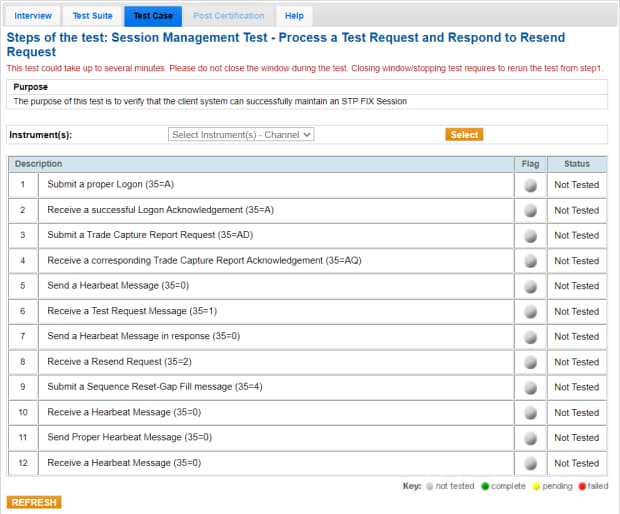

  1. To run a Process a Test Request and Respond to Resend Request test:
  1. Submit a Logon (35=A).
  2. Receive a successful Logon Acknowledgment (35=A).
  3. Submit a Trade Capture Report Request (35=AD).
  4. Receive a corresponding Trade Capture Report Acknowledgment (35=AQ).
  5. Send a Heartbeat (35=0).
  6. Receive a Test Request (35=1).
  7. Send a Heartbeat (35=0) in response.
  8. Receive a Resend Request (35=2).
  9. Submit a Sequence Reset-Gap Fill (35=4).
  10. Receive a Heartbeat (35=0).
  11. Send a Heartbeat (35=0).
  12. Receive a Heartbeat (35=0).
