Primary Gateway Connection Enforcement Test
The purpose of this test is to verify that your system can support primary gateway enforcement.
Note: Due to the assisted failover setup needed for repeatable conditions during certification, failover of gateway components takes a few seconds. It is necessary, only for the purposes of these certification tests, to wait a few seconds before attempting a connection to the newly promoted primary gateway.
- To select the test:
- Select a SenderComp from the drop-down and select ASSIGN if not already assigned.
- From the Test Suite tab, select the linked test.
- Use the Instrument(s) drop down menu to choose an instrument and channel and click SELECT.
Note:
If a test is not proceeding to the next step, clicking the Refresh button (
) below the test steps may resolve the issue.
Referential information is included for messages sent / received during the test.

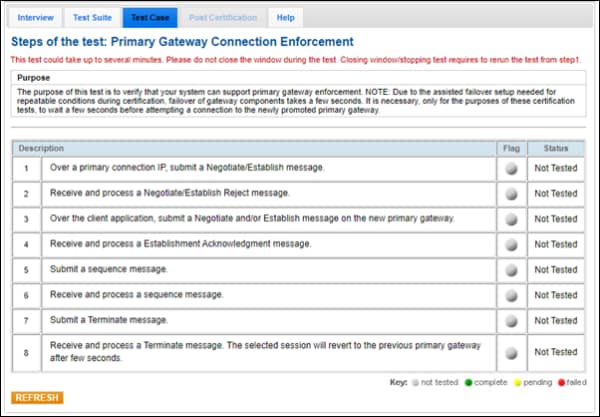

- To run the Primary Gateway Connection Enforcement test:
- Over a primary connection IP, submit a Negotiate / Establish message.
- Receive and process a Negotiate / Establish Reject message.
- Over the client application, submit a Negotiate / Establish message on the new primary gateway.
- Receive and process a Establishment Acknowledgment message.
- Submit a sequence message.
- Receive and process a sequence message.
- Submit a Terminate message.
- Receive and process a Terminate message.
The selected session will revert to the previous primary gateway after few seconds.
