Give-Up Order with Pre-registered / On-demand administrative Give-Up information

The purpose of this test is to verify that the client system can submit an order with Give-Up information pre-register in Service Gateway.

  • To select the test:
  1. Select a SenderComp from the drop-down and select ASSIGN if not already assigned.
  1. From the Test Suite tab, select the linked test.
  2. Use the Instrument(s) drop down menu to choose an instrument and channel and click SELECT.

Note:
If a test is not proceeding to the next step, clicking the Refresh button () below the test steps may resolve the issue.

Referential information is included for messages sent / received during the test.

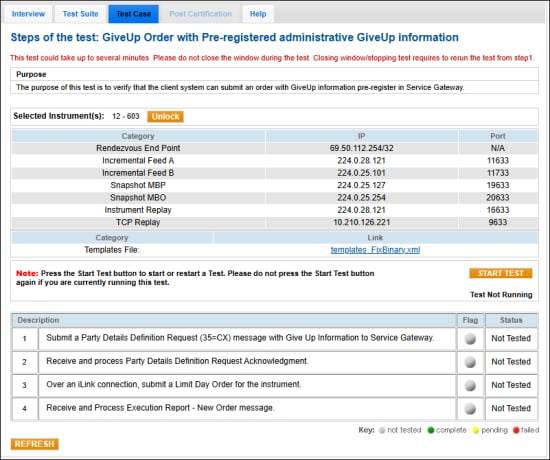

Note: This test is used for both Pre-Registered and On-Demand formats. The above image shows the Pre-Registered version of the test.

  • To run the Give-Up Order test:
  1. Submit a Party Details Definition Request (35=CX) message with Give-Up Information to Service Gateway.
  2. Receive and process Party Details Definition Request Acknowledgment (35=CY).
  1. Over an iLink connection, submit a Limit Day Order [35=D (tag 40-OrdType=2, tag 59-TimeInForce=0)] for the instrument.
  2. Receive and Process Execution Report - New Order (35=8, 39=0) message.
