Order Cancel Replace without OrderID
The purpose of this test is to verify the client system can submit and modify a Day limit order without providing an OrderID (tag 37).
This test case is mandatory if the response to the interview question "Will your system support Cancel Replace without OrderID?" is Yes.
- Select a SenderComp from the drop-down and select ASSIGN if an Instrument is not already assigned.
- From the Instrument(s) drop-down, select the desired instrument if it is not already locked.
- Select the START TEST button.
Note: DO NOT select the START TEST button once the test is in progress. If a test is not proceeding to the next step, selecting the Refresh button (
) below the test steps may resolve the issue.
Pre-Registered or On-Demand Format
This test is used for both Pre-Registered and On-Demand formats. The below instructions show the Pre-Registered format.
- To run a Order Cancel Replace without OrderID test:
- Over an iLink connection submit a Day Limit Order Message [tag 35=D | tag 59-TimeInForce=0 (Day) | tag 40-OrderType=2 (Limit order)].
- Receive and Process the Execution Report - New Order Message (35=8, 39=0).
- Submit and Order Cancel / Replace Request without OrderID Message (35-MsgType=G | tag 11-ClOrdID | without tag 37-OrderID).
- Receive and process an Execution Report - Modify Message (35=8, 39=5).

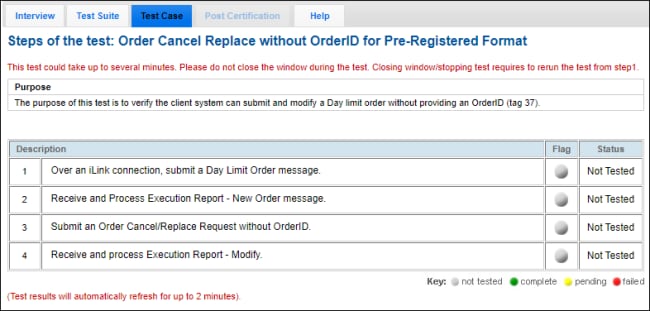

Pre-Registered format screen

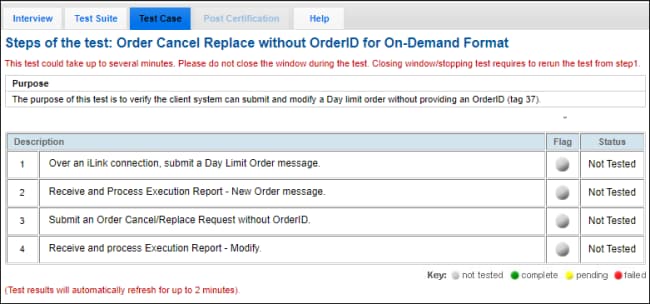

On-Demand format screen
