Pre-Registration of Administrative Information in Service Gateway

The purpose of this test is to verify the client system can properly connect to the Order Entry Service Gateway (OESGW) for submitting both Party Details Definition Request messages and Party Details List Request messages and submit an order with the pre-registered administrative information.

Note: For this test the session sequence numbers will be reset to one.



Note: If a test is not proceeding to the next step, selecting the Refresh button ( ) below the test steps may resolve the issue.

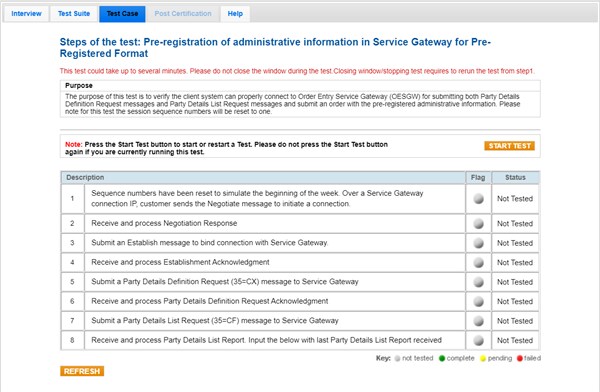

  1. To run a Pre-Registration of Administrative Information in Service Gateway test:
  1. Select a SenderComp from the drop-down and select ASSIGN if a SenderComp is not already assigned.
  2. Select the START TEST button.

Note: DO NOT select the START TEST button once the test is in progress.

  1. Sequence numbers have been reset to simulate the beginning of the week. Over a Service Gateway connection IP, send a Negotiate message to initiate a connection.
  2. Receive and process Negotiation Response.
  3. Submit an Establish message to bind the connection with the Service Gateway.
  4. Receive and process Establishment Acknowledgment.
  5. Submit a Party Details Definition Request (35=CX) message to Service Gateway.
  6. Enter the tag 1505-PartyDetailsListRequestID value to indicate that your system received and processed the Party Details Definition Request Acknowledgment.
  7. Submit a Party Details List Request (35=CF) message to Service Gateway.
  8. Enter the following tag values to indicate that your system received and processed the Party Details List Report:
  • tag 1512-TotNoParties
  • tag 893-LastFragment
