Order Cancel without Order ID

The purpose of this test is to verify the client system can submit and cancel a Day limit order without providing an OrderID (tag 37).

Pre-Registered or On-Demand Format

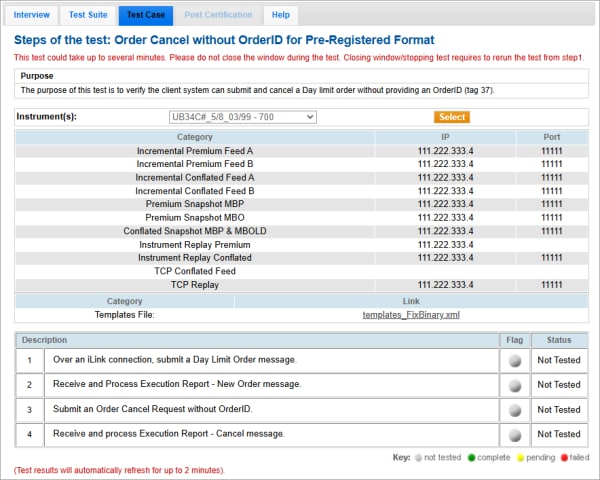

Note: This test is used for both Pre-Registered and On-Demand formats. The below image shows the Pre-Registered format version of the test.

Note: If a test is not proceeding to the next step, selecting the Refresh button ( ) below the test steps may resolve the issue.

  1. To run an Order Cancel without Order ID test:
  1. Select a SenderComp from the drop-down and select ASSIGN if a SenderComp is not already assigned.
  2. From the Contracts drop-down, select the desired contract if the contract is not already locked.
  3. Select the START TEST button.

Note: DO NOT select the START TEST button once the test is in progress.

  1. Over an iLink connection, submit a Day Limit [35=D - tag 59(TimeInForce)=0(Day), tag 40(OrdType)=2(Limit)] Order message.
  2. Receive and Process Execution Report - New Order (35=8, 39=0) message.
  3. Submit an Order Cancel Request (35=F) without OrderID (omit tag 37-OrderID or send null value).
  4. Receive and process Execution Report - Cancel (35=8, 39=4) message.
