iLink Order Mass Action Request by Instrument Group

The Purpose of this test is to verify that customer application can submit Order Mass Action Request (35=CA) to cancel working orders by Instrument Group.

Pre-Registered or On-Demand Format

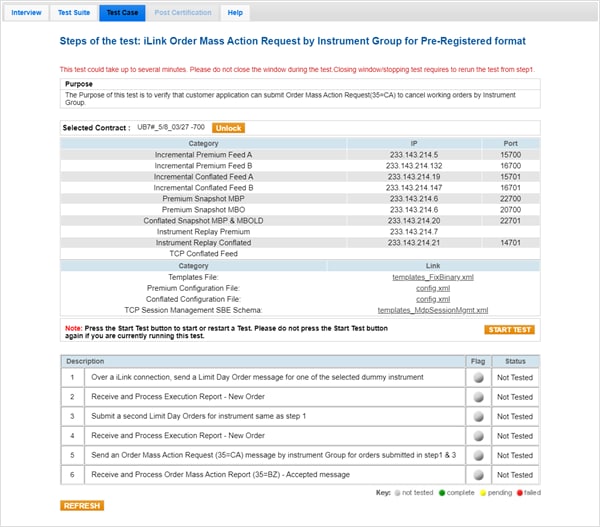

Note: This test is used for both Pre-Registered and On-Demand formats. The below image shows the Pre-Registered format version of the test.



Note: If a test is not proceeding to the next step, selecting the Refresh button ( ) below the test steps may resolve the issue.

  1. To run an iLink Order Mass Action Request by Instrument Group test:
  1. Select a SenderComp from the drop-down and select ASSIGN if a SenderComp is not already assigned.
  2. From the Contracts drop-down, select the desired contract if the contract is not already locked.
  3. Select the START TEST button.

Note: DO NOT select the START TEST button once the test is in progress.

  1. Over a iLink connection, send a Limit Day Order message for one of the selected dummy instruments.
  2. Select Yes or No to indicate whether your system received and processed the Execution Report - New Order.
  3. Submit a second Limit Day Orders for the same instrument as step 1.
  4. Select Yes or No to indicate whether your system received and processed the Execution Report - New Order.
  5. Send an Order Mass Action Request (35=CA) message by instrument Group for orders submitted in step 1 & 3.
  6. Enter the following tag values to indicate that your system received and processed the Order Mass Action Report (35=BZ) - Accepted message:
  • tag 1374-MassActionScope
  • tag 1375-MassActionResponse
