Manual Order Indicator for ATS System (Mass Quotes)

The purpose of this test case is to verify how the client system is using the Manual Order Indicator tag.

Pre-Registered or On-Demand Format

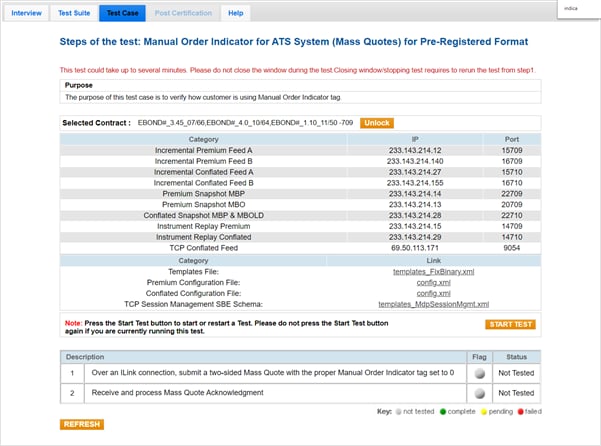

Note: This test is used for both Pre-Registered and On-Demand formats. The below image shows the Pre-Registered format version of the test.



Note: If a test is not proceeding to the next step, selecting the Refresh button ( ) below the test steps may resolve the issue.

1. To run a Manual Order Indicator for ATS System (Mass Quotes) test:

1. Select a SenderComp from the drop-down and select ASSIGN if a SenderComp is not already assigned.
2. From the Contracts drop-down, select the desired contract if the contract is not already locked.
3. Select the START TEST button.

Note: DO NOT select the START TEST button once the test is in progress.

4. Over an iLink connection, submit a two-sided Mass Quote with the Manual Order Indicator tag set to 0.
5. Select Yes or No to indicate whether your system received and processed the Mass Quote Acknowledgment.
